Applications:

 The series sanitary aseptic sampling valve must do sterilization processing before and after sampling each time.The medium is sealed by diaphragm directly,no pitting corrosion and easy for cleaning and sampling any time which widely used in the fields ad : beverage、drinking、milk、food、pharmaceuticals…

Operating principles:

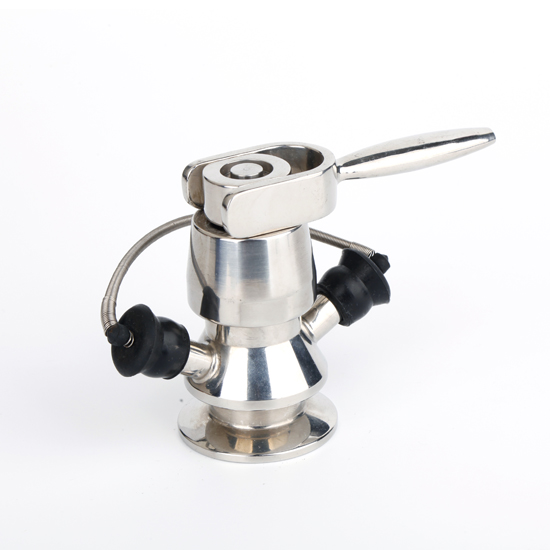

 The aseptic sampling is normally in close status,can do sterilization to the seat and seal from the two connection ends,lift up the handle the valve open then liquid come from sampling port ,also we can remove handle (on the request) this design absolutely meet the aseptic sampling result.

 Manual &Pneumatic 2 in 1 type aseptic sampling valve is normally in close status,operated by manual or pneumatic.when valve open, the valve stem and diaphragm assembly will shrink up to get liquid through.this desigh absolutely meet the aseptic sampling result.

Technical data:

Pressure

material:304/316L

diaphragm:EPDM(standard)

product pressure:the standard casae maximum 6bar (86psi)

available upon request 10bar pressure.

Temperature

Max.sterilization temperature,dry steam:121-134℃.steam must be dry,because the condensate water will damage the diaphragm.kindly suggest customer to replace the diaphragm after 100 times sampling and sterilization.
