Sanitary sight glass

Applications:

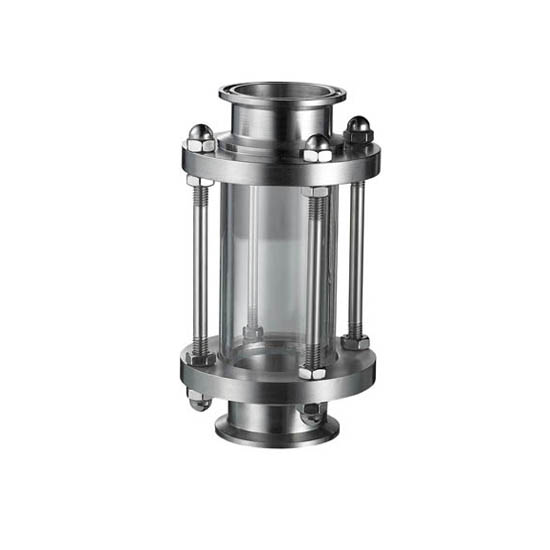

Sanitary sight glass is comprised of stainless steel frame and glass.through it ,operator can observe the flowing of the liquid substance clearly and precisely in the fields of food ,cosmetics,pharmaceutical and fine chemicals industries.

Material

Product steel parts:304/316L

Other material of glass:silicon boride glass or ,tempered glass sealing silicon boride glass or tempered glass

Sealing elements:EPDM,NBR,PTFE

Working temperature:-20~135℃（when the sealing is EPDM）

sanitary straight sight glass is comprised of stainless steel frame and glass .through it ,operator can observe the flowing of the liquid substance clearly and precisely in the fields of food,cosmetics,pharmaceutical and fine chemicals industries.

 sight glasses are designed for visual inspection of media inside pipes and/or inspection of pigs in product recovery systems.the borosilicate glass inside the housing is fixed without any tension and does resists hard pressure and vibration shocks. Sight glasses are accurate gage glasses that permit direct distortion-free visual inspection of process conditions,products,liquid levels and cleaning inside vessels used in the dairy ,food and beverage ,personal care and biopharm industries.

 sanitary full-view sight flow indicators/sight glasses are used to provide 360-degree viewing of material flow in a line.the unit is available in sanitary connection from 3/4"to 6"sizes,and can be supplied with a protective tubing of polycarbonate (lexan) tubing,acrylic tubing,or slotted stainless steel,depending on temperature requirements.the sanitary full-view sight flow indicator/sight glass allows observation of fluids in transit through a three-dimensional pipeline.

 sanitary sight glass assemblies are used widely in the food ,dairy ,beverage ,biotech,pharmaceutical,and all other sanitary process industries to view products and fluids.snaitayr sight glass assemblies are placed inline with rigid pipe lines where product visibility is needed.thank unloading,processing,and product transfer are a few of the many areas where sanitary sight glass assemblies are used inline with product transfer lines.
